RRS-1903 On-Line Store

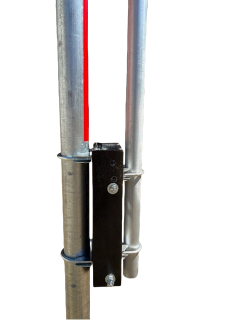

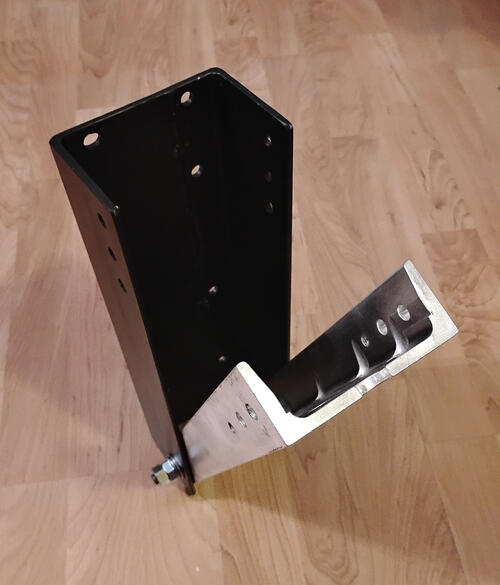

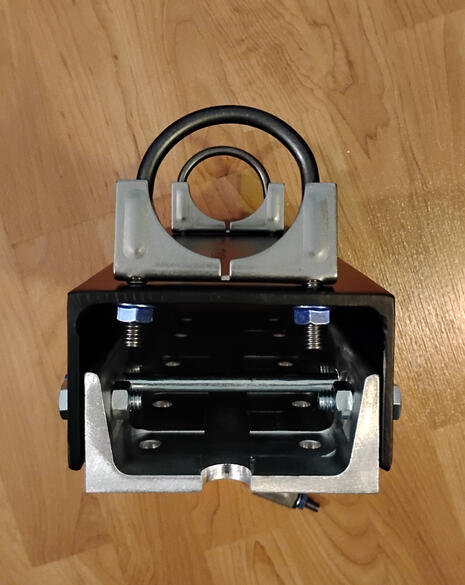

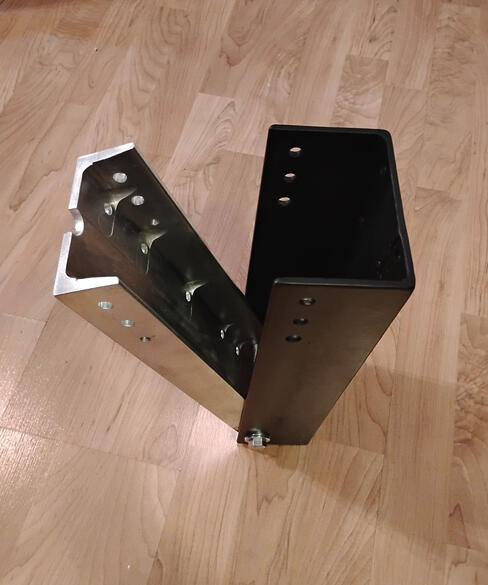

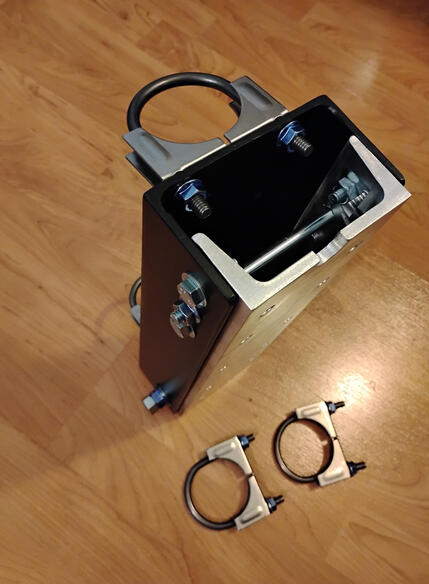

Product Details:Vertical Base Tilt-Over Antenna Mount. This new and improved design is similar to the MFJ-1903 Tilt Mount and the Intellitron AB-1612 tilt mount for vertical base antennas. Similar in appearance, superior in design and strength. Far stronger and very much improved over others in the market.Individually made not mass produced. Fabricated from 6061 four inch aluminum channel (quarter inch thick) and mild steel angle that is used to make the outer larger channel. There is No Flex with this new stronger design !Pivots / hinges on a larger more robust pin / bolt rather than the two 5/16 bolts that are used on other similar tilt mounts . Is secured in place when in the "Up" position by two bolts that thread into the channel rather than using nuts and bolts as the 1903 did. This allows for easier securing without having to reach inside the channel to hold the nut with a wrench.This standard version comes with four (4) U-bolts. Two for the "Antenna" tilt-over side and two for the stationary side. Included U-bolts work with mast or pipe up to two (2) inch outside diameter.Length: 13.4 inches
Width: 4.5 inches
Depth: 3 inches
Weight: 10.50 lbsShips FREE in the U S. ! Made in the USA$158.50Please allow four (4) business days for this to leave my shop. This item is fabricated after it is ordered. Can be ordered and purchased even when it says "Out of Stock".If you need a custom or modified version of this item (or ANY item I make) please contact me with your request .73 from N9KGC2NA201

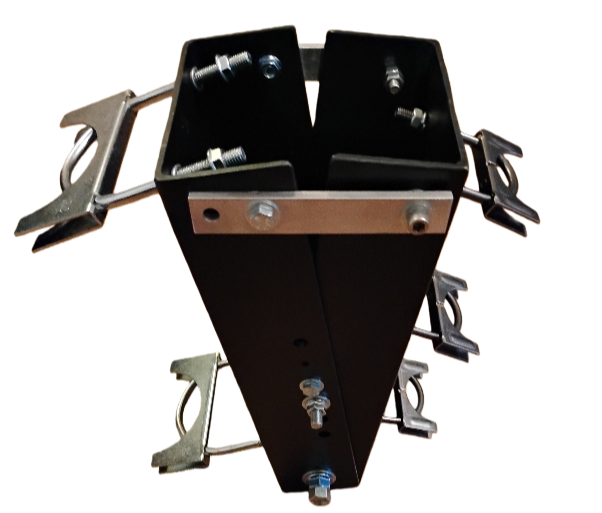

Custom Builds: This area is under construction. If you need a custom or "made to order" version contact me. 73 from N9KGC
